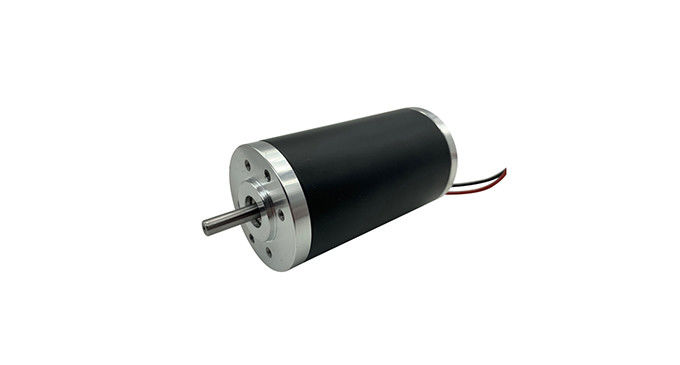

52zyt01a 52mm Permanent Magnet Brush Micro DC Motor replace dunker motor Gr53x25 series 12v 24v 36v 40v 3700rpm 0.11Nm

52zyt01a 52mm Permanent Magnet Brush Micro DC Motor replace dunker motor Gr53x25 series 12v 24v 36v 40v 3700rpm 0.11Nm

  • Highlight

    O.D52mm permanent magnet brushed dc motor

    ,

    O.D52mm brushed dc motor

    ,

    brushed dc motor 3700rpm 0.11Nm

  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

52zyt01a 52mm Permanent Magnet Brush Micro DC Motor replace dunker motor Gr53x25 series 12v 24v 36v 40v 3700rpm 0.11Nm

O.D52mm Series



Motor Specifications

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP50, option for IP54

Insulation class: F

Certified by CE and ROHS



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Motor Main Characteristics





Model 52ZYT01A 52ZYT02A 52ZYT02B 52ZYT03A 52ZYT03B
Rated Voltage 24v (option for 12v up to 115vdc)
Rated Speed (rpm) 3700 3500 9736 3300 4200
Rated Torque (Nm) 0.11 0.20 0.20 0.27 0.35
No load speed (rpm) 4200 4200 10652 4000 5200
Weight (Kg) 0.85 0.98 0.98 1.16 1.160
Motor Length (mm) 95 110 110 125 125
Output Power (W) 43 73 204 93 154


Drawing
