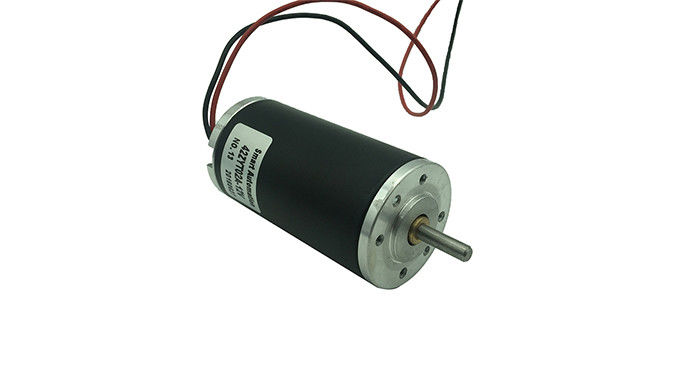

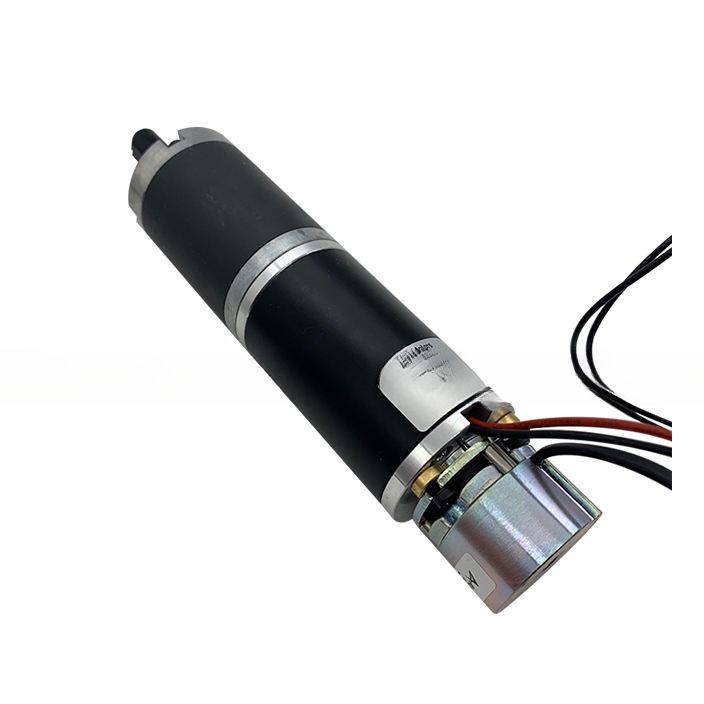

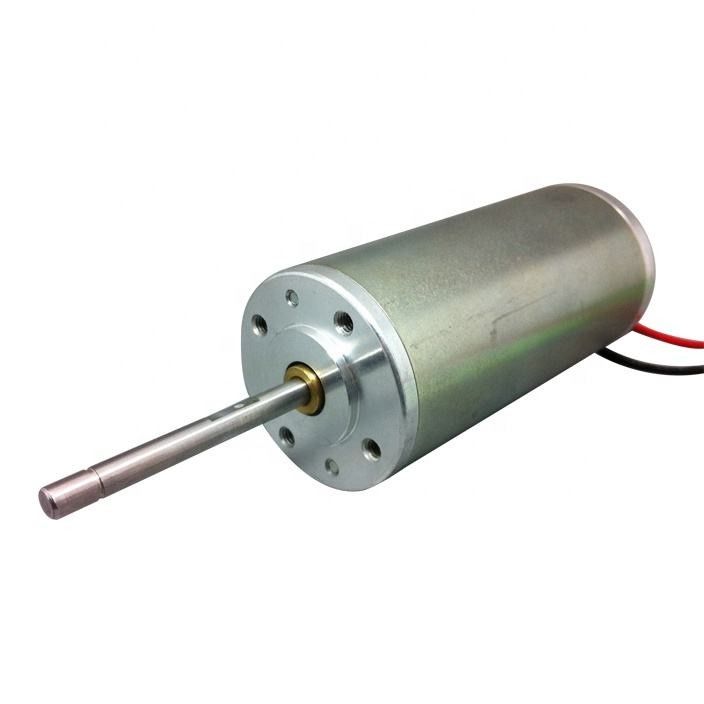

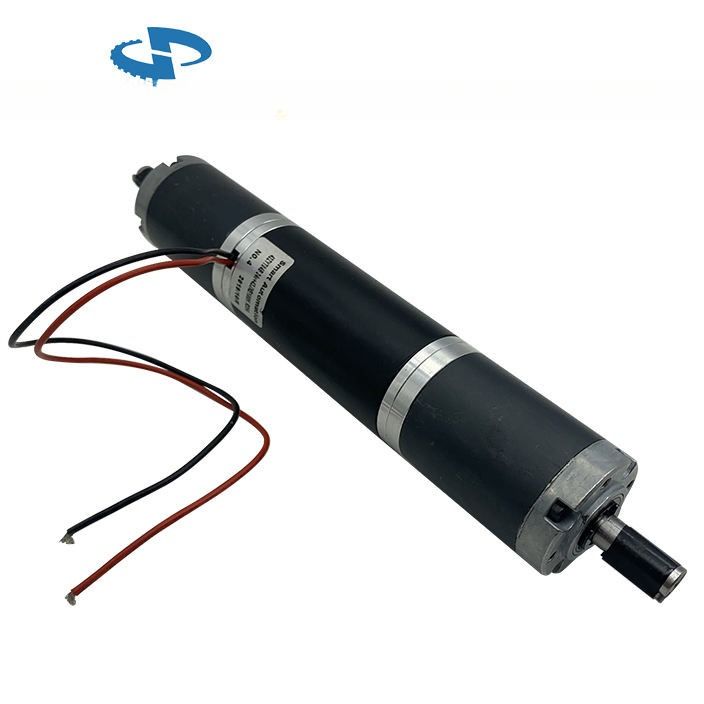

Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes

Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes

Products - Brushed DC Motor
  • Highlight

    O.D42mm 2 pole dc motor IP50

    ,

    O.D42mm Brush DC Motor IP50

    ,

    Hard ferrite magnet Brush DC Motor

  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes

  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
  • Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes
Get Price Contact Now

O.D42mm Series



Motor Specifications

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP50

Insulation class: F

Certified by CE and ROHS



Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Motor Main Characteristics





Model 42ZYT01A 42ZYT02A 42ZYT03A 42ZYT04A 42ZYT04B 42ZYT04C
Rated Voltage 24v (option for 12v up to 60vdc)
Rated Speed (rpm) 3500 3100 3300 3350 4700 8770
Rated Torque (mNm) 38 57 65 70 100 100
No load speed (rpm) 4200 3800 4200 4000 5900 10000
Weight (g) 390 490 520 550 550 550
Motor Length (mm) 70 80 85 90 90 90
Output Power (W) 14 19 22 25 49 92





Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes 0Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes 1



Hard Ferrite Magnet 2 Poles Brush DC Motor O.D42mm Series Option with integrated Gearbox Encoder and Power-off Brakes 2
