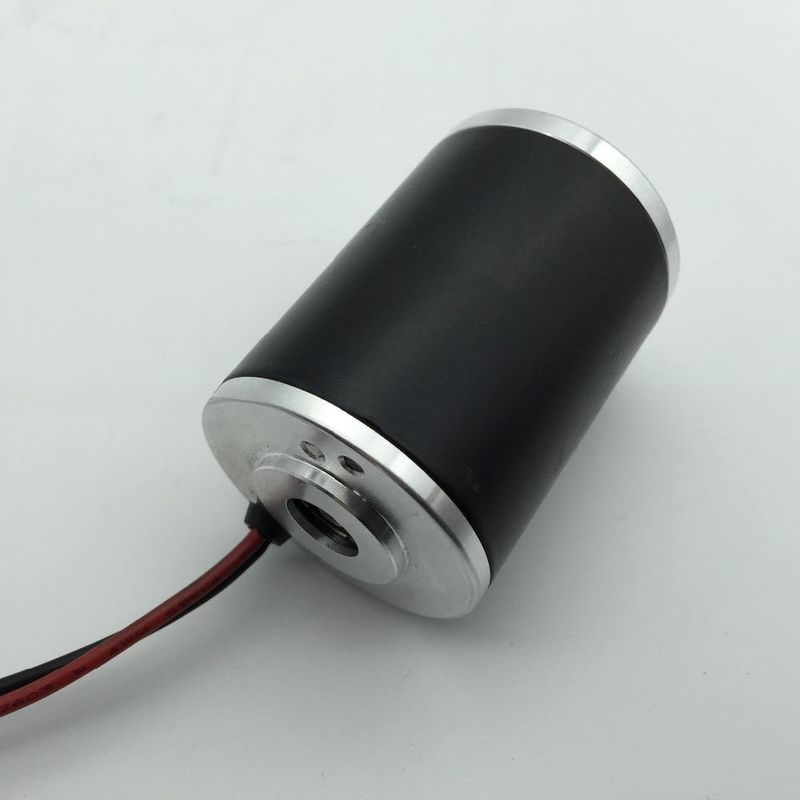

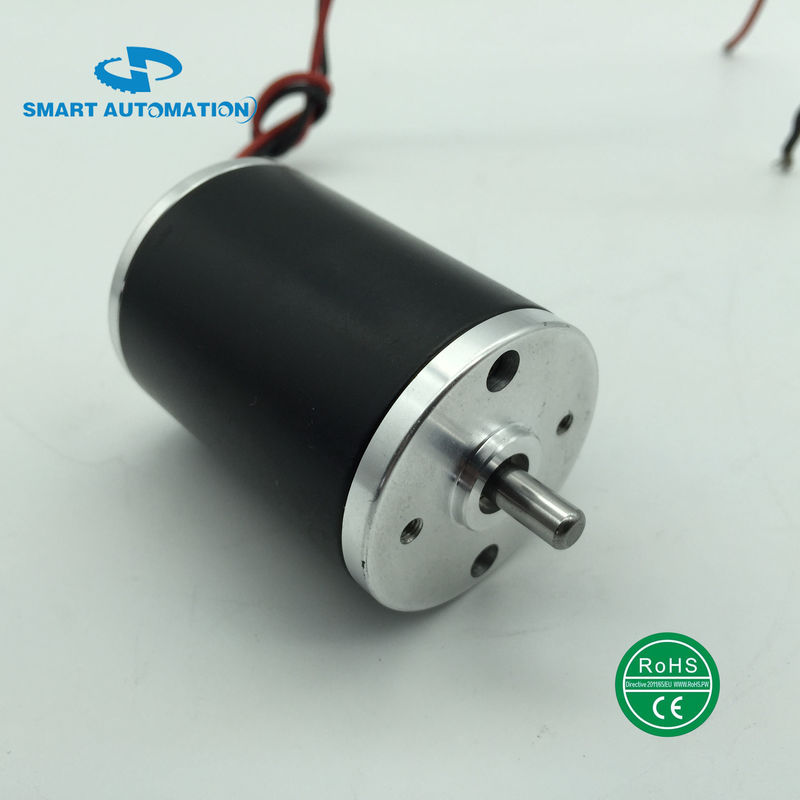

O.D38mm 38ZYN Series Rare Earth Magnet High Torque Small Size Brushed Dc Micro Motor 12v 24v 55mNm 100mNm 150mNMm
-
Highlight
O.D38mm brushed dc gear motor
,brushed dc gear motor 55mNm
,O.D38mm 12v brushed dc motor
-
WarrantyOne Year
-
Voltage Range12 To 60v Dc
-
Bear TypeHigh Quality Ball Bearings
-
Torque55mNm 100mNm 150mNMm
-
Oem ServiceAvailable
-
Protect FeatureOther
-
ApplicationIndustrial Automation
-
Shaft LengthCustomized
-
Motor TypeBrush DC
-
Nominal Voltage12V 24V
-
Threaded Hole2-M3x0.4
-
Rated Speed3000rpm
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model Number38ZYN
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
O.D38mm 38ZYN Series Rare Earth Magnet High Torque Small Size Brushed Dc Micro Motor 12v 24v 55mNm 100mNm 150mNMm
38ZYN Series NdFeB Magnets Brushed Dc Motor
38ZYN Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: NdFeB Magnet, 2- Poles
Protection Class: IP50 (Option IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
38ZYN Motor Main Technical Specification:
| Model | Unit | 38ZYN01A | 38ZYN02A | 38ZYN03A | 38ZYN04A |
| Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||
| No Load Speed | Rpm | 3950 | 3950 | 3950 | 3950 |
| Rated Torque | mN.m | 55 | 70 | 100 | 120 |
| Rated Speed | Rpm | 3300 | 3250 | 3200 | 3200 |
| Rated Current | A | 1.13 | 1.42 | 2.0 | 2.4 |
| Output Power | W | 19 | 23.8 | 33.5 | 40.2 |
| Weight | G | 260 | 300 | 340 | 380 |
| Motor Length | Mm | 60 | 70 | 80 | 90 |
Drawing:
Speed-Torque Curve:
