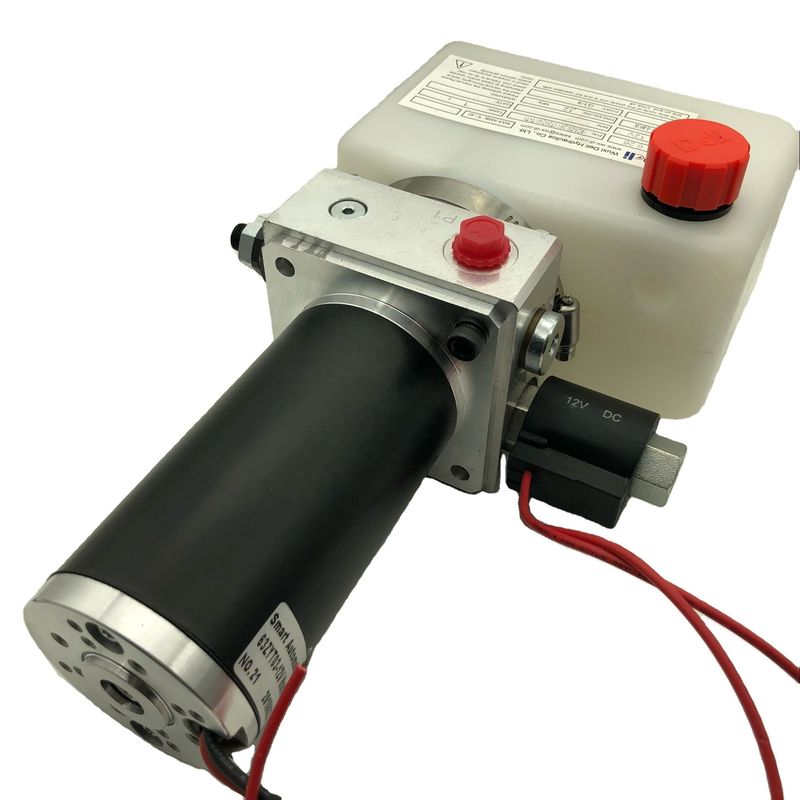

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

  • Highlight

    Custom Dc Pump Motor

    ,

    Brushless Dc Pump Motor

  • Torque
    Customed
  • Power
    20w-500w
  • Speed
    Customed
  • Voltage
    Dc 12v-48v
  • Place of Origin
    CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    ROHS CE ISO9001
  • Model Number
    zyt-bl
  • Minimum Order Quantity
    100
  • Packaging Details
    STANDARD EXPOTR PACKAGE
  • Delivery Time
    45DAYS
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    100000PCS

Custom Dc Pump Motor for Hydraulic Air Water Liquid Fuel Oil Pumps 12v 24v 36v 48v Brushless or Brushed Customized OEM

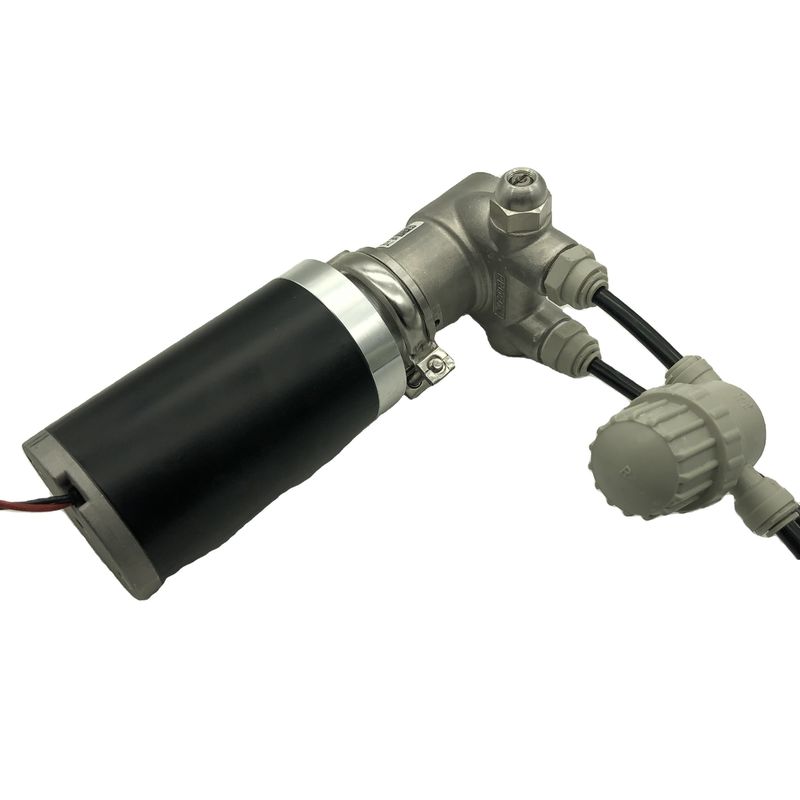

Customized Dc motors for air pumps, water pumps, hydraulic pumps







Brushed version



Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40~+140

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation







Rated voltage : 12v 18v 24v 36v 48v

Rated torque : upto 2.0Nm

Power: upto 800w

Rated speed: upto 10000rpm

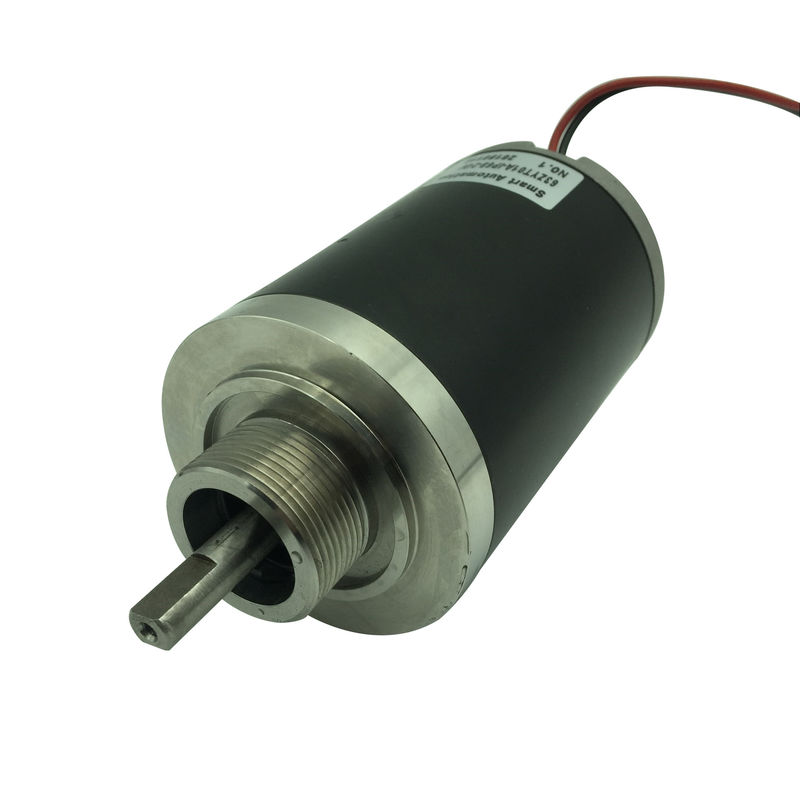

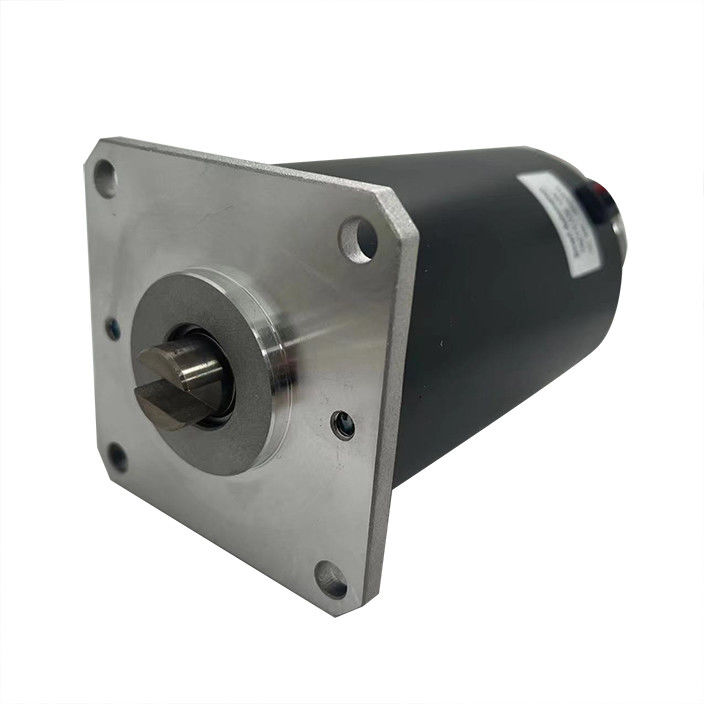

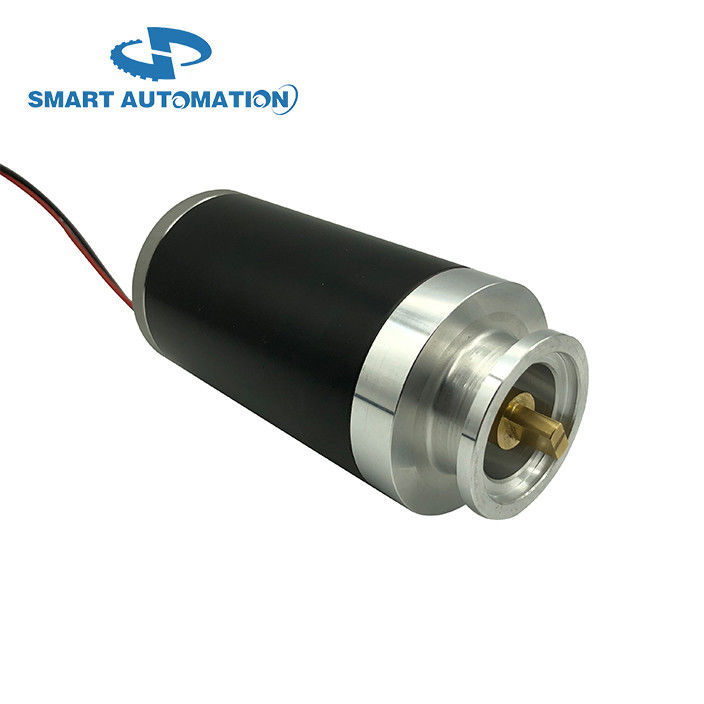

Customized pumps motors

g76zytIMG_3806









IMG_3627IMG_3625









IMG_4651gdc brushed 008IMG_4201







size 42mm series

42zyt data sheet







size 52mm series












Size 63mm series










size 76mm series

76zyt data







MORE

brush dc









Brushless version



Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 4,8- poles

Protection class IP00 40 54 66

Insulation class: F, operating temperature range:-40~+140

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation







Rated voltage : 12v 18v 24v 36v 48v

Rated torque : upto 3Nm

Rated speed: upto 12000rpm

With or without halls

With or without controller integrated



57HBL











80rbl bldc











Shaft Modifications and Motor Adders Available: Gearbox, Encoder and Controller OPTION

BLDC







57mm bldc

IMG_6090





80mm bldc










BLDC gearbox and brake encoder controller integrated



IMG_2171 -
