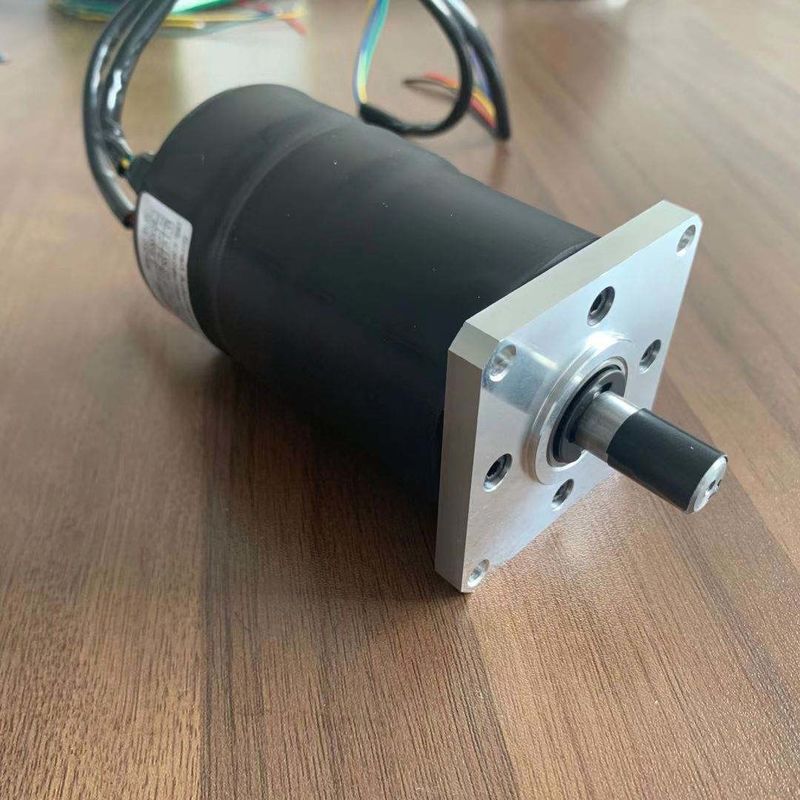

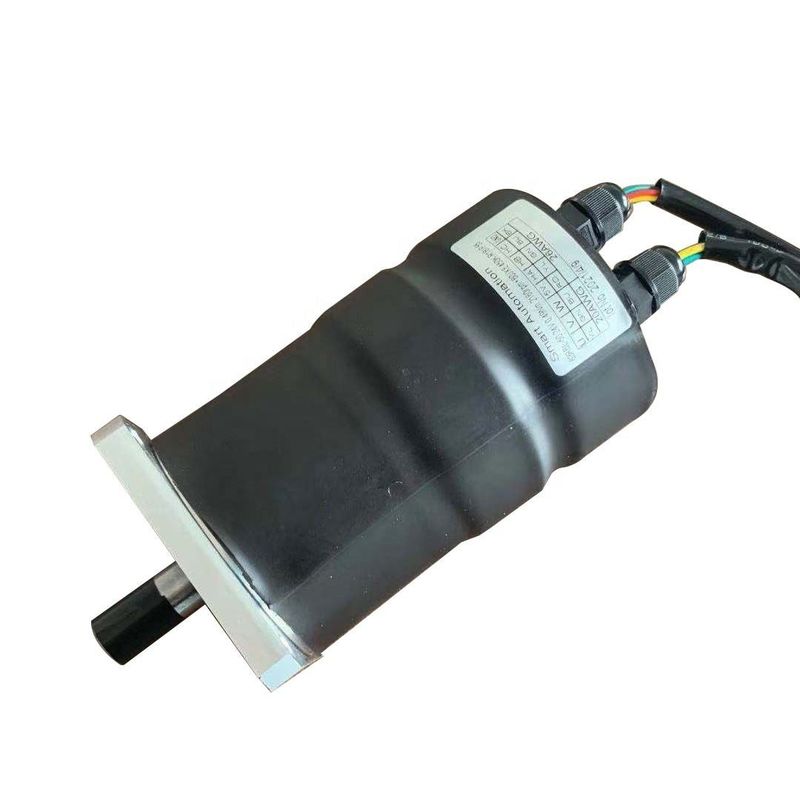

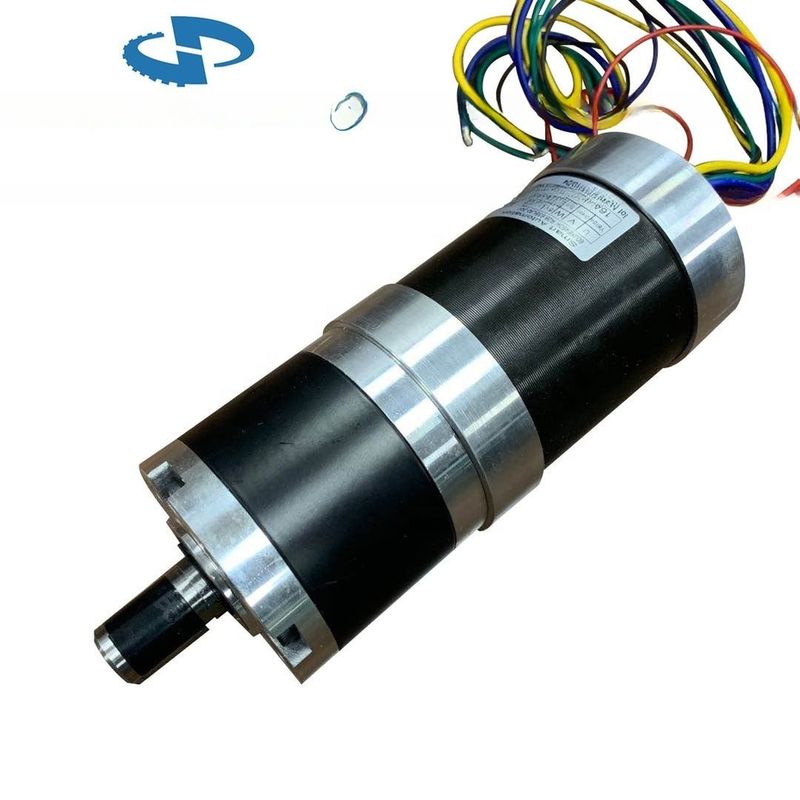

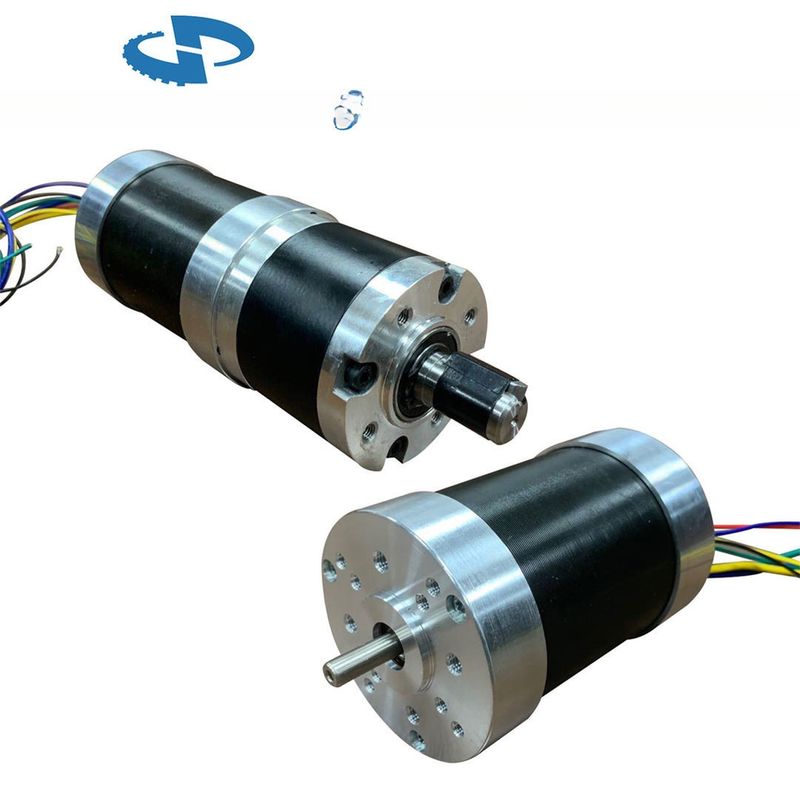

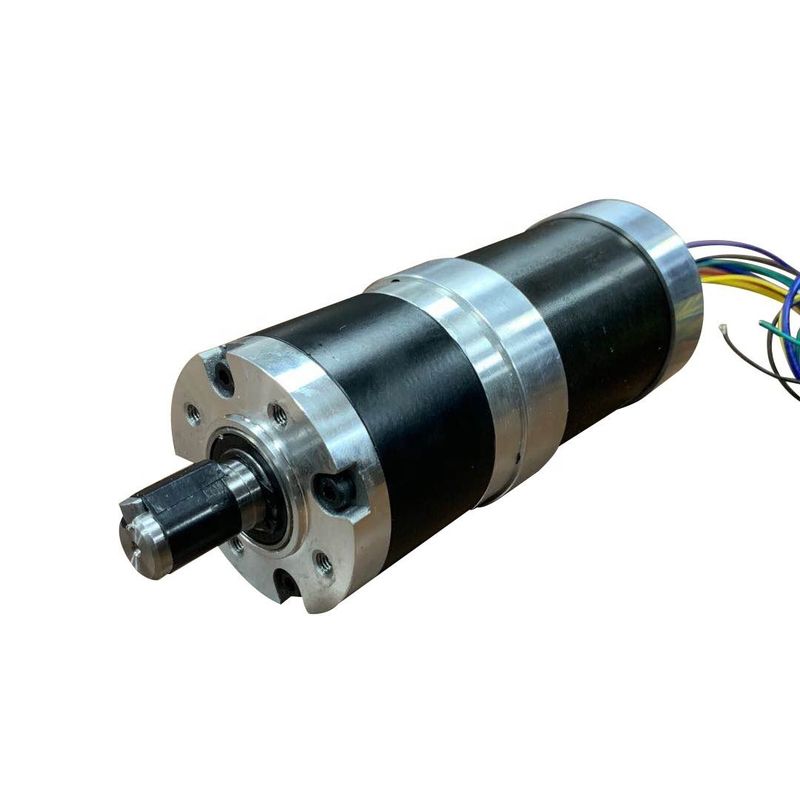

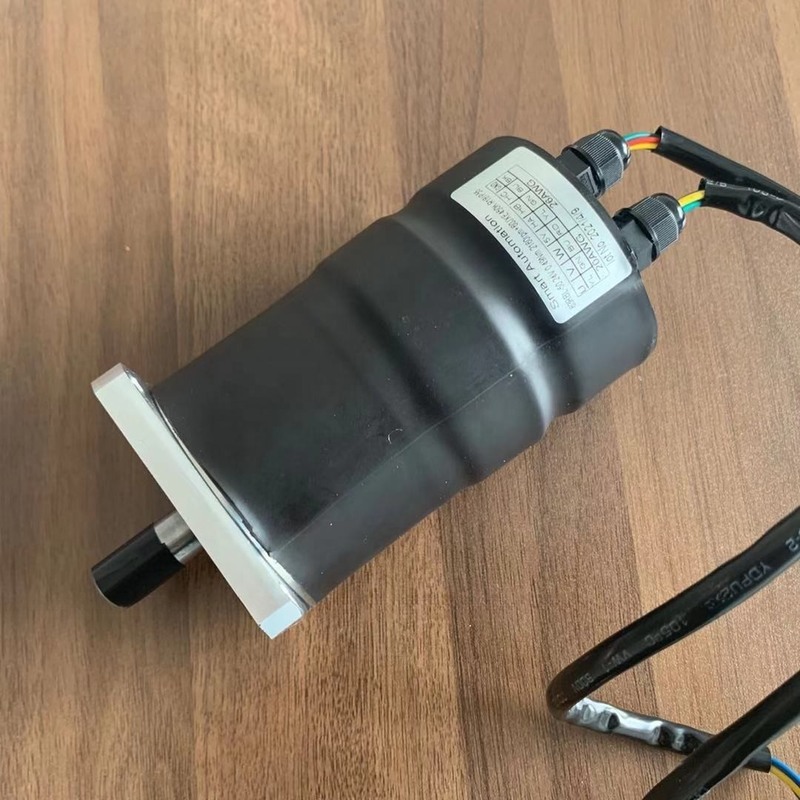

Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine

Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine

Products - Motor Customization & OEM
  • Highlight

    120rpm sun tracking motor

    ,

    Brushless Dc Motor for solar panels

    ,

    120rpm sun tracking motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized
  • Speed(RPM)
    Customized
  • Efficiency
    IE 1
  • Voltage(V)
    12v, 24v
  • Output Power
    50w 100w 200w
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Machine, Robot
  • Type
    Micro Motor
  • Torque
    7Nm Customized
  • Construction
    Permanent Magnet
  • Commutation
    Brush And Brushless
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine

  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
  • Custom Cleaning Robot Brushless Dc Motor used for solar panels cleaning, BLDC Motors for DRIVE and BRUSH of the Machine
Get Price Contact Now

Brushless Dc Motor used for solar panels cleaning robot machine, BLDC DRIVE and BRUSH applications



Belows are only standard versions.

We can provide customized motor performance, shaft, mounting...etc





Electric connection

Lead No. Lead Color Lead Gauge Function DESCRIPTION
1 Red UL1007/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A
4 Green HALL B
5 Blue HALL C
6 Yellow UL1007/14AWG PHASE U
7 Green PHASE V
8 Blue PHASE W






Motor 1 specification:





Gearmotor specification

Rated voltage 24 V DC

No load speed 200 ±10%rpm

No load current <= 1.8 A

Rated torque 7.2 N.m

Rated speed 120 ±10%rpm

Rated current <= 8.5 A

Ratio 1/ 18


Dimensions

Brushless Dc Motor used for solar panels cleaning robot machine, BLDC DRIVE and BRUSH applications



(note: round flange is also available)



Motor 2 specification:



Gearmotor specification

Rated voltage 24 V DC

No load speed 62 ±10%rpm

No load current <= 1.5 A

Rated torque 14.5 N.m

Rated speed 40 ±10%rpm

Rated current <= 6.5 A

Ratio 1/ 52

Brushless Dc Motor used for solar panels cleaning robot machine, BLDC DRIVE and BRUSH applications





(note: round flange is also available)











Brushless Dc Motor used for solar panels cleaning robot machine, BLDC DRIVE and BRUSH applicationsBrushless Dc Motor used for solar panels cleaning robot machine, BLDC DRIVE and BRUSH applications
