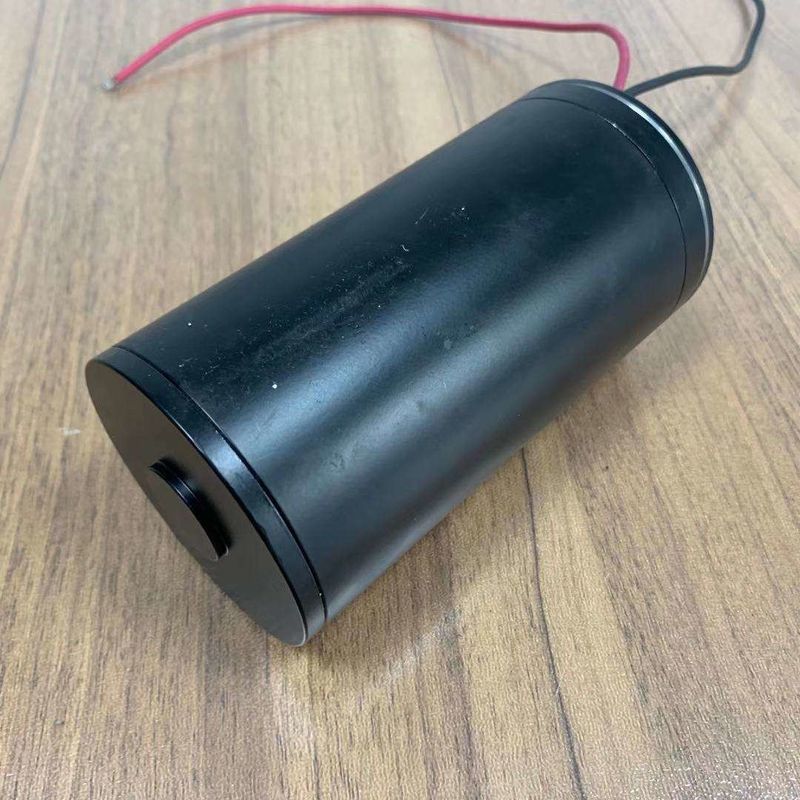

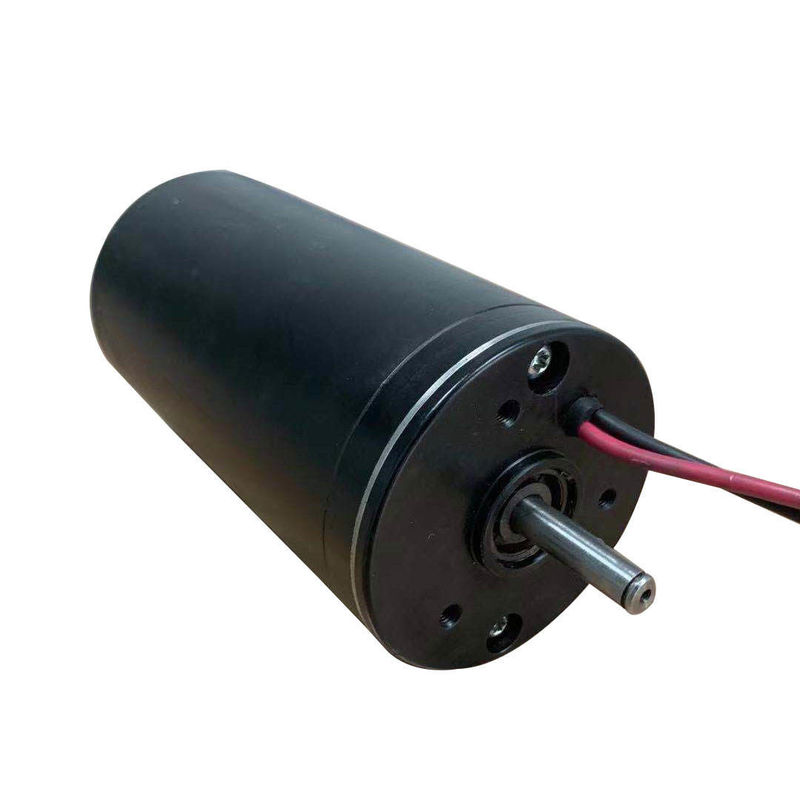

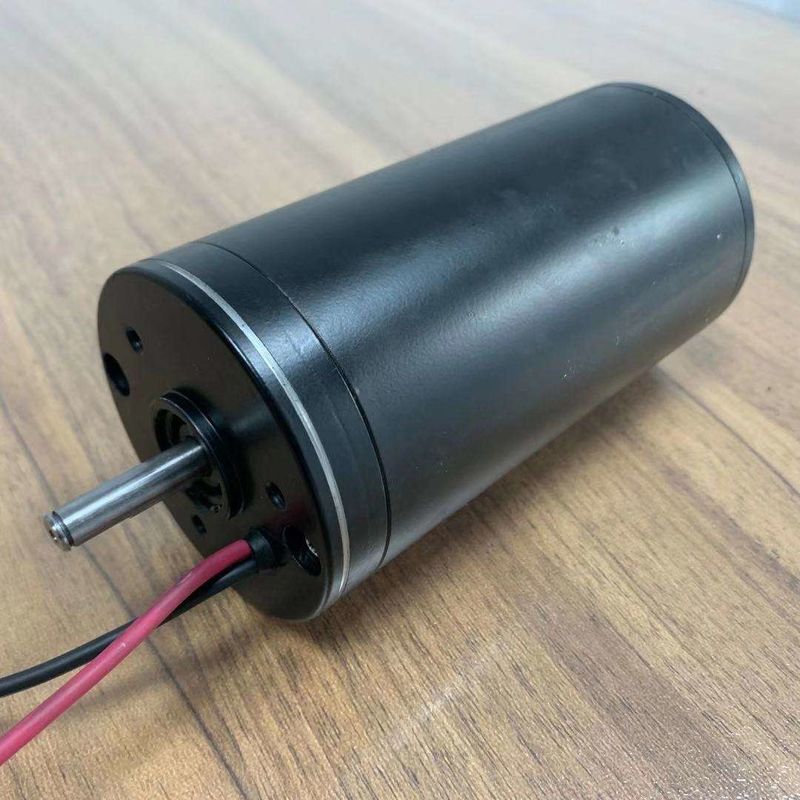

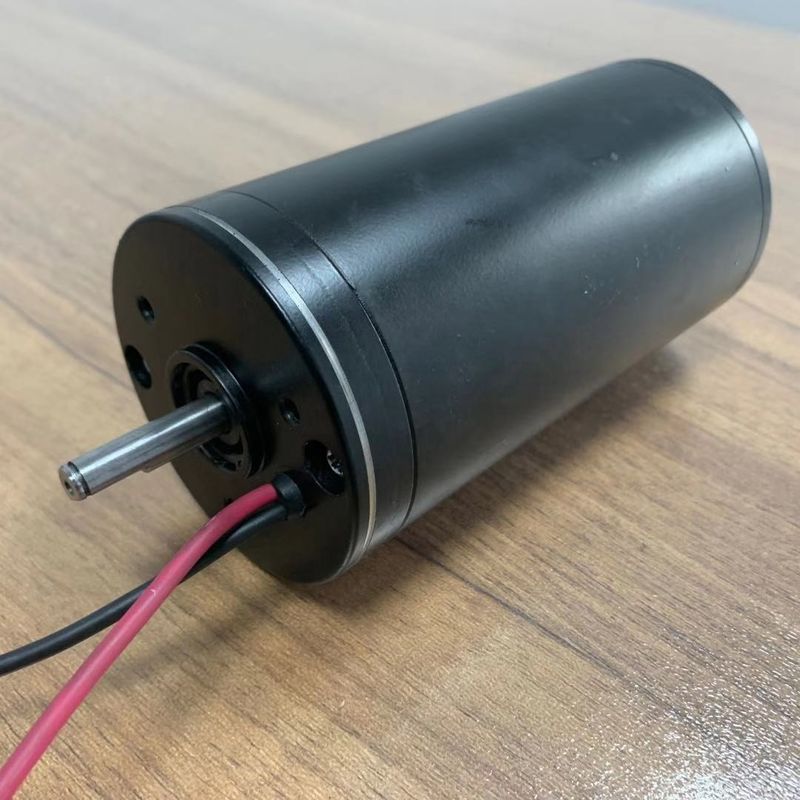

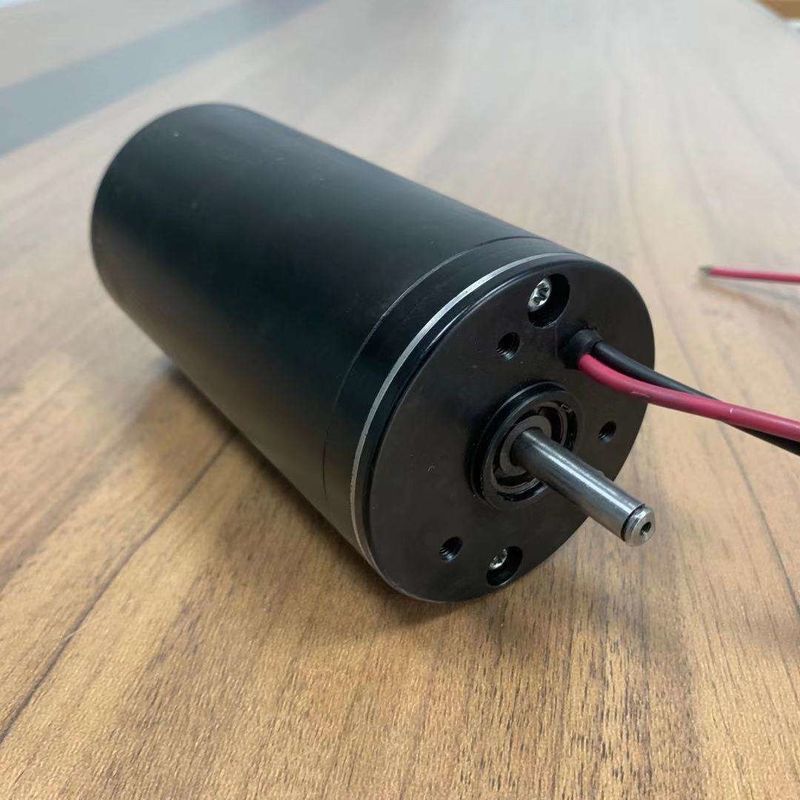

76mm High Torque Push Rod Putter Dc Motor Linear Actuator 24v DC Motor IP66

76mm High Torque Push Rod Putter Dc Motor Linear Actuator 24v DC Motor IP66

  • Highlight

    76mm push rod putter dc motor

    ,

    76mm linear actuator 24v dc motor

    ,

    linear actuator 24v dc motor IP66

  • Warranty
    3years
  • Port
    Shanghai
  • Current / Phase
    1.68A
  • Speed(RPM)
    1800rpm
  • Continuous Current(A)
    8a Max.
  • Efficiency
    IE 1
  • Voltage(V)
    12v, 24v
  • Output Power
    80~160w
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Other
  • Type
    Dc Motor
  • Torque
    700mNm
  • Construction
    Permanent Magnet
  • Commutation
    Brush
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

76mm High Torque Push Rod Putter Dc Motor Linear Actuator 24v DC Motor IP66

76mm high torque push rod putter dc motor, 24v linear actuator motor IP66



Below are only some typical models.
For more information or a customed motor, Pls contact us.




Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation







Permanent Magnet Brush DC Motor

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 66

Insulation class: F, operating temperature range:-40~+140





CE and ROHS certified









Rated voltage 24 V DC

No load speed 2400 ±10%rpm

No load current <= 0.5 A

Rated torque 0.7 N.m

Rated speed 1800±10%rpm

Rated current <= 8 A
