63WG.63ZYT Automatic Sliding Door DC Motor with Metal or Plastic Gear Ratio 5 10 15 30, Optical Encoder Integrated

63WG.63ZYT Automatic Sliding Door DC Motor with Metal or Plastic Gear Ratio 5 10 15 30, Optical Encoder Integrated

  • Highlight

    63WG.63ZYT automatic sliding Door Motor

    ,

    63WG Series sliding door motor

    ,

    63WG.63ZYT pmdc worm gear motor

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Efficiency
    IE 1
  • Voltage(V)
    12v, 24v
  • Output Power
    80~160w
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Door
  • Type
    Micro Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brush
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

63WG.63ZYT Automatic Sliding Door DC Motor with Metal or Plastic Gear Ratio 5 10 15 30, Optical Encoder Integrated

63WG Series 12v 24v Dc automatic sliding Door Motor lift and open gate



63WG.63ZYT SERIES PM DC WORM GEAR MOTOR



Motor Specifications:

Bearing: High Quality Ball Bearing

Magnet: Hard Ferrite Magnet, 2- Poles

Protection Class: IP50 (Option for IP54)

Insulation Class: Class F / Working Temperature: -40~+140



Motor Main Characteristics:

Model Unit 63ZYT01A/01L 63ZYT02A/02L 63ZYT03A/03L
Rated Voltage VDC 24v (option for 12v up to 48vdc)
Rated Speed Rpm 3100 1550 3000 1800 3000 2000
Rated Torque N.m 0.15 0.12 0.31 0.25 0.41 0.35
No Load Speed Rpm 3600 1800 3500 2400 3500 2600
Weight Kg 1 1 1.2 1.2 1.35 1.35
Motor Length Mm 95 95 110 110 125 125
Output Power W 50 19 98 47 129 73









63WG Series Worm Gearbox Specifications:

Reduction ratio   10 15 30
Efficiency   0.65 0.55 0.45
Continuous torque Ncm Up to 1000(metallic gears) / Up to 400(non-metallic gears)
Weight of gearbox kg 0.4
Axial load/radial load N 300/350



63WG Series 12v 24v Dc automatic sliding Door Motor lift and open gate







63WG Series 12v 24v Dc automatic sliding Door Motor lift and open gate





63WG Series 12v 24v Dc automatic sliding Door Motor lift and open gate

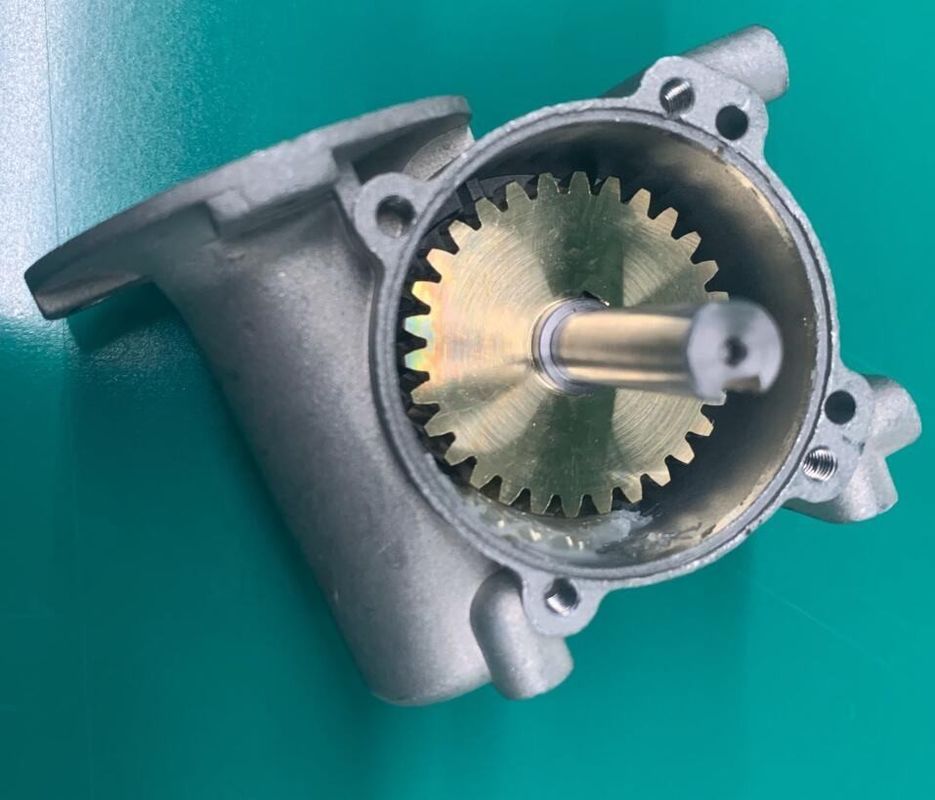

Copper gear



63WG.63ZYT Automatic Sliding Door DC Motor with Metal or Plastic Gear Ratio 5 10 15 30, Optical Encoder Integrated 3

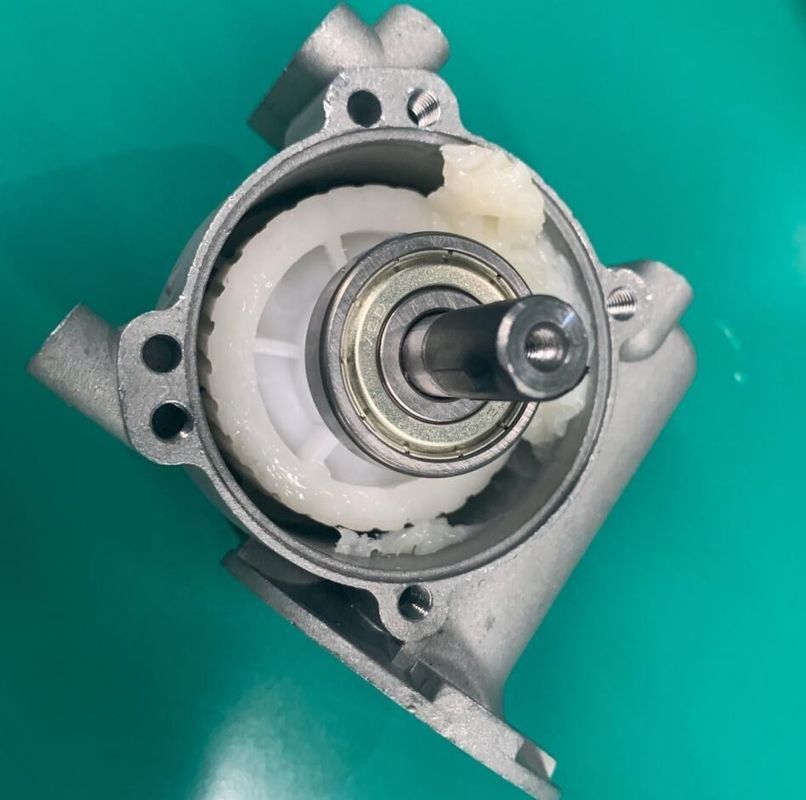

Plastic gear

63WG.63ZYT Automatic Sliding Door DC Motor with Metal or Plastic Gear Ratio 5 10 15 30, Optical Encoder Integrated 4

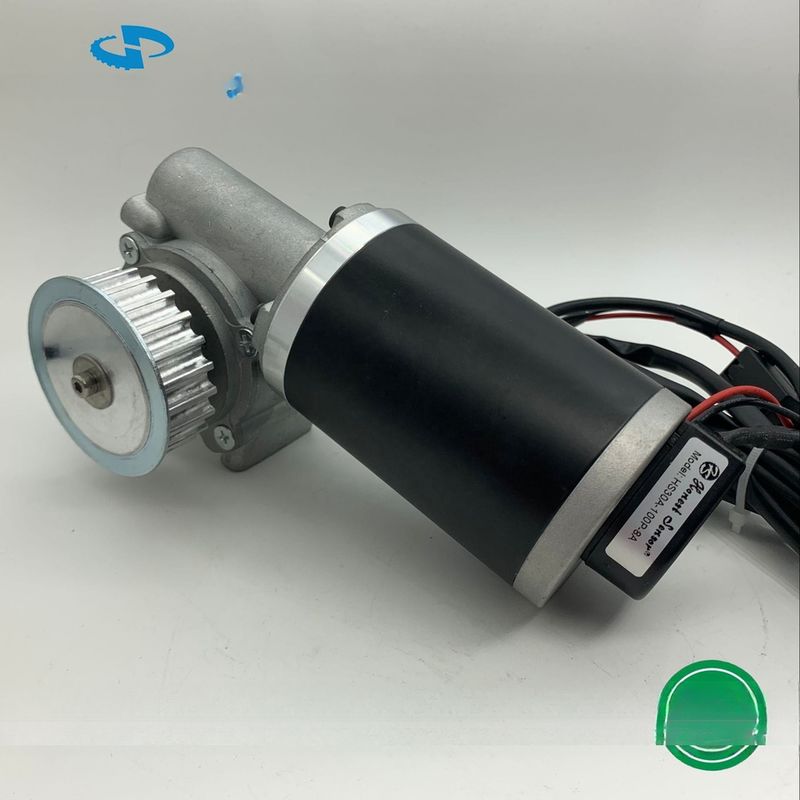

Option for optical/magnet encoder
