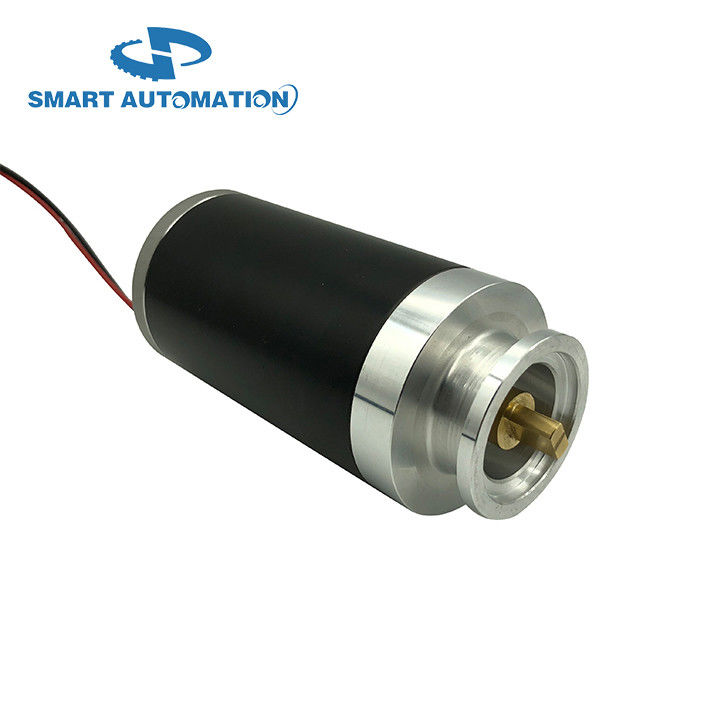

Custom DC Water Pump Motor, Air Pump DC Motor 12 volt 24 volt with Customized Special Flange Shaft and Performance

Custom DC Water Pump Motor, Air Pump DC Motor 12 volt 24 volt with Customized Special Flange Shaft and Performance

  • Highlight

    Hard ferrite magnet dc pump motor

    ,

    hydraulic 12V dc water pump motor

    ,

    24v dc water pump motor IP 54

  • Warranty
    3years
  • Port
    Shanghai
  • Current
    Customized For Different Power
  • Speed(RPM)
    Customed
  • Continuous Current(A)
    Customed
  • Efficiency
    IE 1
  • Voltage(V)
    12v, 24v
  • Output Power
    50w 100w 200w 300w 500w
  • Usage
    Car, Electric Bicycle, FAN, Home Appliance, Lift And Handling
  • Type
    Dc Motor
  • Torque
    Customed
  • Construction
    Permanent Magnet
  • Commutation
    Brush
  • Protect Feature
    Drip-proof
  • Place of Origin
    Changzhou CHINA
  • Brand Name
    SMART AUTOMATION
  • Certification
    CE
  • Model Number
    OEM
  • Minimum Order Quantity
    50
  • Price
    To be negotiated
  • Packaging Details
    To be negotiated
  • Delivery Time
    To be negotiated
  • Payment Terms
    D/A, T/T, L/C,D/P
  • Supply Ability
    10000 Piece/Pieces per Month

Custom DC Water Pump Motor, Air Pump DC Motor 12 volt 24 volt with Customized Special Flange Shaft and Performance

customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM



Customized Dc motors for air pumps, water pumps, hydraulic pumps







Brushed version,



Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40~+140

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation







Rated voltage : 12v 18v 24v 36v 48v

Rated torque : upto 2.0Nm

Power: upto 800w

Rated speed: upto 10000rpm

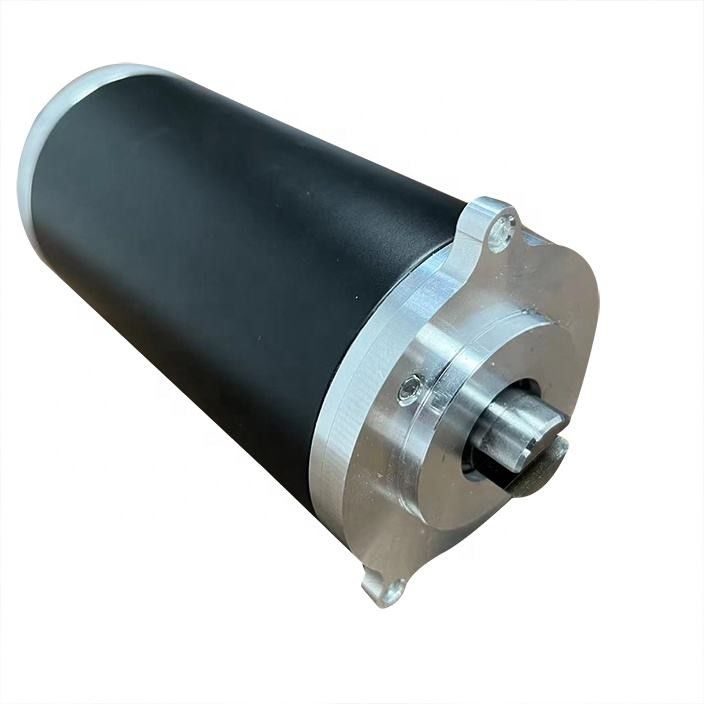

customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM

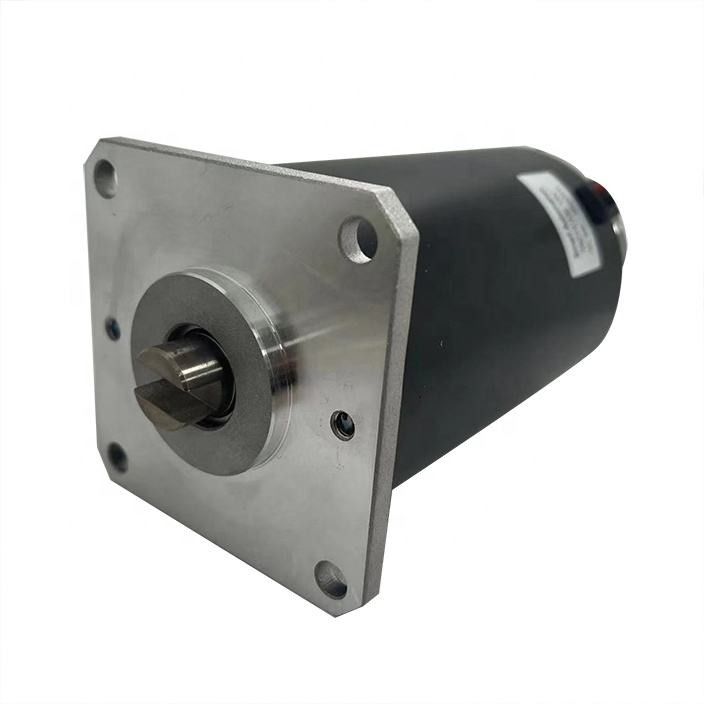

customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM



customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM





customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM









Brushless version,



Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 4,8- poles

Protection class IP00 40 54 66

Insulation class: F, operating temperature range:-40~+140

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation







Rated voltage : 12v 18v 24v 36v 48v

Rated torque : upto 2.5Nm

Rated speed: upto 12000rpm

With or without halls

With or without controller integrated

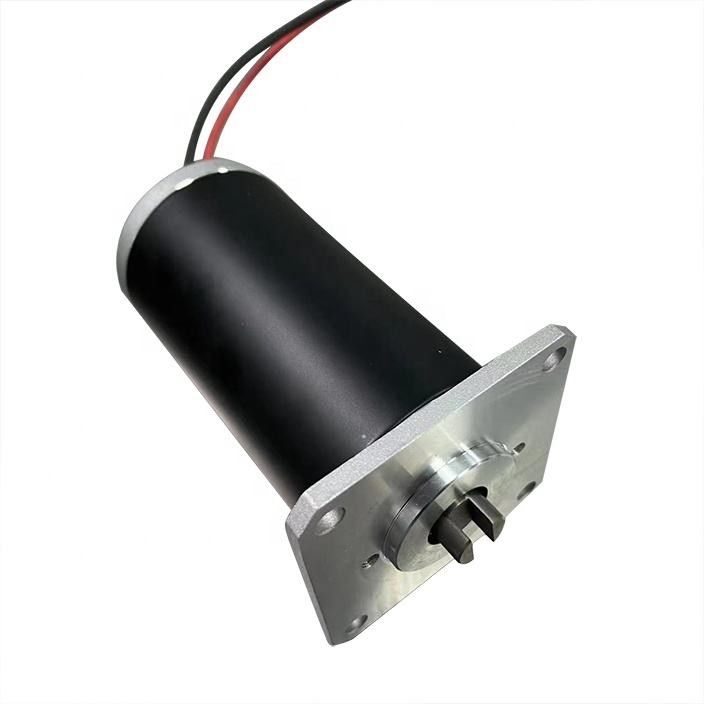

Custom DC Water Pump Motor, Air Pump DC Motor 12 volt 24 volt with Customized Special Flange Shaft and Performance 4

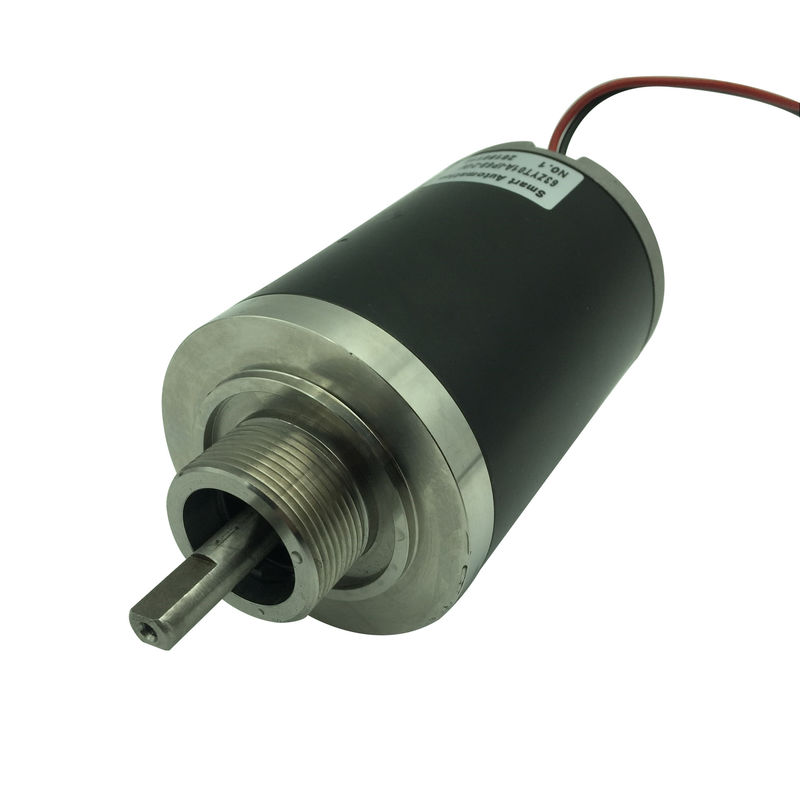

Custom DC Water Pump Motor, Air Pump DC Motor 12 volt 24 volt with Customized Special Flange Shaft and Performance 5



















Some specific model for reference,

Permanent Magnet Brush DC Motor 76ZYT02A-2

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40~+140

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation




Model 76ZYT02A-2
Rated voltage V dc 12 24 40
Continuous rated speed rpm 2600 2600 2600
Continuous rated torque N.m 0.46 0.46 0.46
Continuous current A 13 6.5 3.9
Starting torque N.m 2.6 2.6 2.6
Starting current A 68 34 20.5
No load speed rpm 3200 3200 3200
No load current A 1.0 0.6 0.3
Weight of motor g 2000 2000 2000
Motor length mm 118 118 118









customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM







Permanent Magnet Brush DC Motor 76ZYT03A-2

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 54

Insulation class: F, operating temperature range:-40~+140

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Model 76ZYT03A-2
Rated voltage V dc 12 24 40
Continuous rated speed rpm 2600 2600 2600
Continuous rated torque N.m 0.65 0.65 0.65
Continuous current A 20.5 10.1 6.1
Starting torque N.m 3.51 3.51 3.51
Starting current A 104 50 30
No load speed rpm 3200 3200 3200
No load current A 1.5 1.0 0.6
Weight of motor g 2500 2500 2500
Motor length mm 138 138 138
