63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals
-
Highlight
63mm brushless high torque motor
,brushless high torque motor 1000rpm
,high torque bldc motors 3000rpm
-
Warranty3years
-
PortShanghai
-
CurrentCustomized For Different Power
-
Speed(RPM)1000rpm 3000rpm 4000rpm Or Customed
-
Continuous Current(A)Customed
-
UsageCar, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Machine
-
TypeMicro Motor
-
TorqueUpto 0.8Nm Without Gearhead
-
ConstructionBrushless
-
CommutationBrushless
-
Protect FeatureDrip-proof
-
EfficiencyIE 1
-
Place of OriginChangzhou CHINA
-
Brand NameSMART AUTOMATION
-
CertificationCE
-
Model NumberOEM
-
Minimum Order Quantity50
-
PriceTo be negotiated
-
Packaging DetailsTo be negotiated
-
Delivery TimeTo be negotiated
-
Payment TermsD/A, T/T, L/C,D/P
-
Supply Ability10000 Piece/Pieces per Month
63mm Economical Brushless High Torque Dc Robotics Motor 1000rpm 3000rpm 4000rpm for Robot Machine Home Electricals
63mm High Torque Brushless Dc Motor, Customized Specification Gearbox/Encoder/Controller Integrated, to Replace Dunker&P

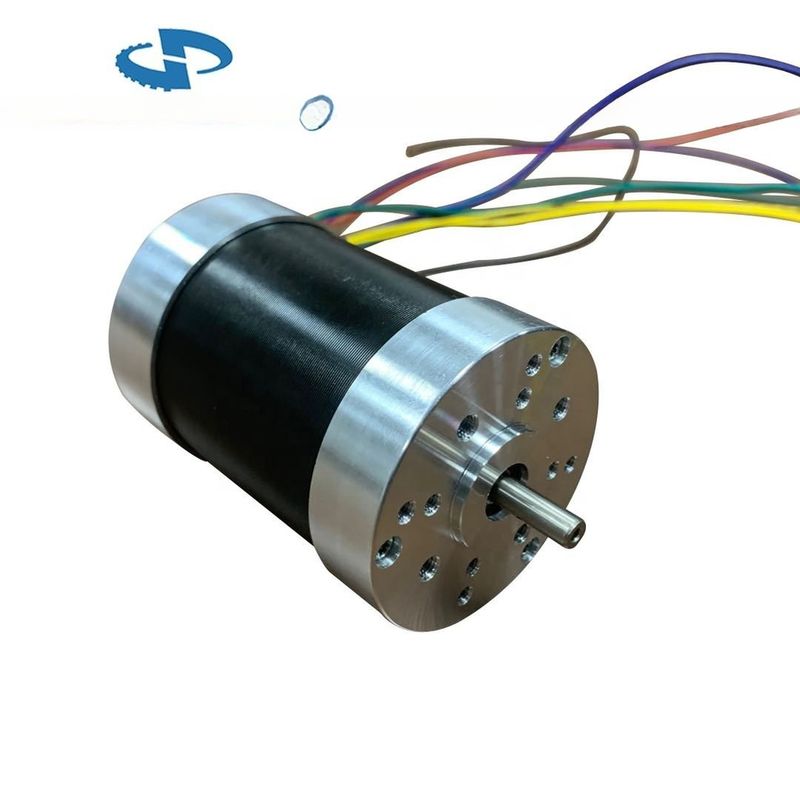

63RBL Series 63mm Brushless Dc Motor
Customized Specification
Option:Gearbox/Encoder/Controller Integrated
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120° (electrical angle) |
| Shaft run out | 0.025mm |
| Radial play | 0.05mm@450g |
| End play | 0.05mm@450g |
| Max. radial force | 150N@10mm from the flange |
| Max. axial force | 60N |
| Insulation class | Class F |
| Dielectric Strength | 500VDC for one minute |
| Insulation resistance | 100MΩMin.500VDC |
Electric connection
| Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
| 1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | ||
| 4 | Green | HALL B | ||
| 5 | Blue | HALL C | ||
| 6 | Yellow | UL1007/14AWG | PHASE U | |
| 7 | Green | PHASE V | ||
| 8 | Blue | PHASE W |

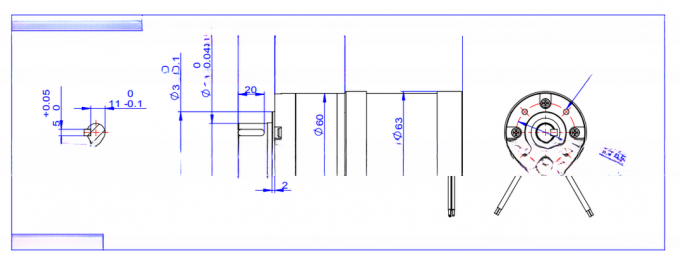

Dimensions

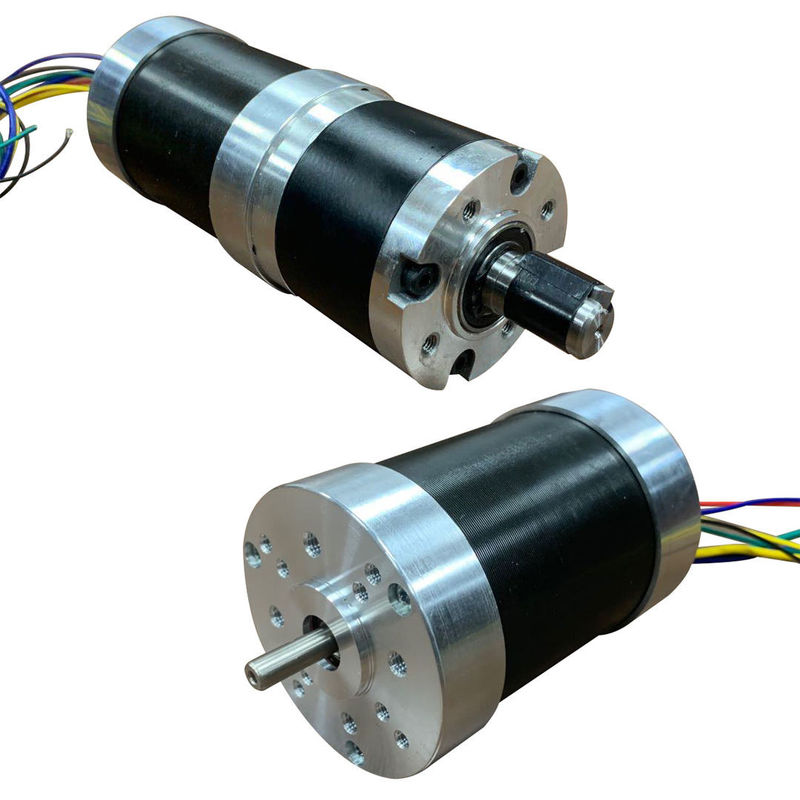

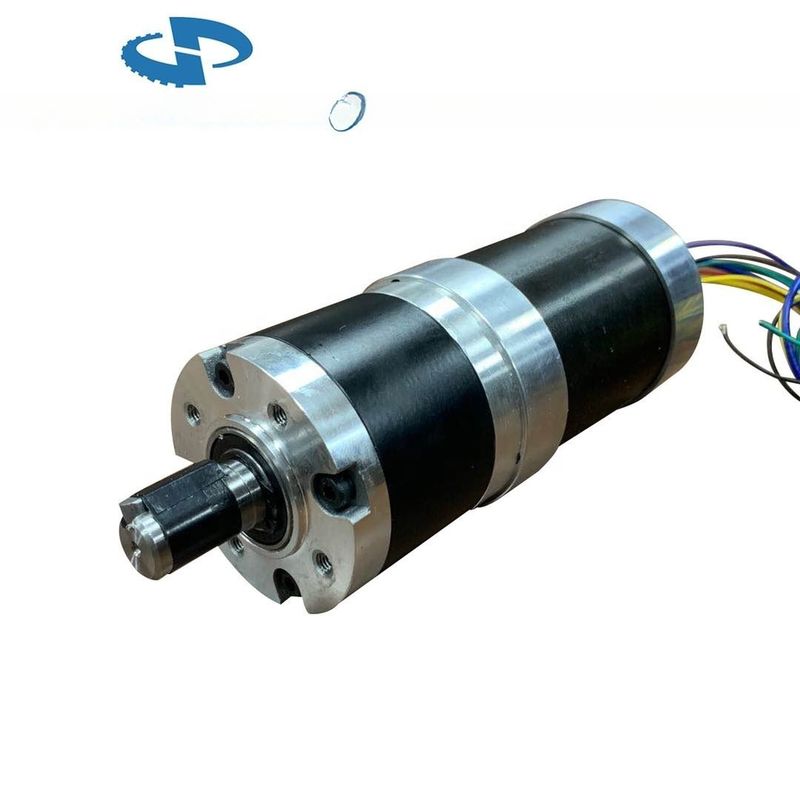

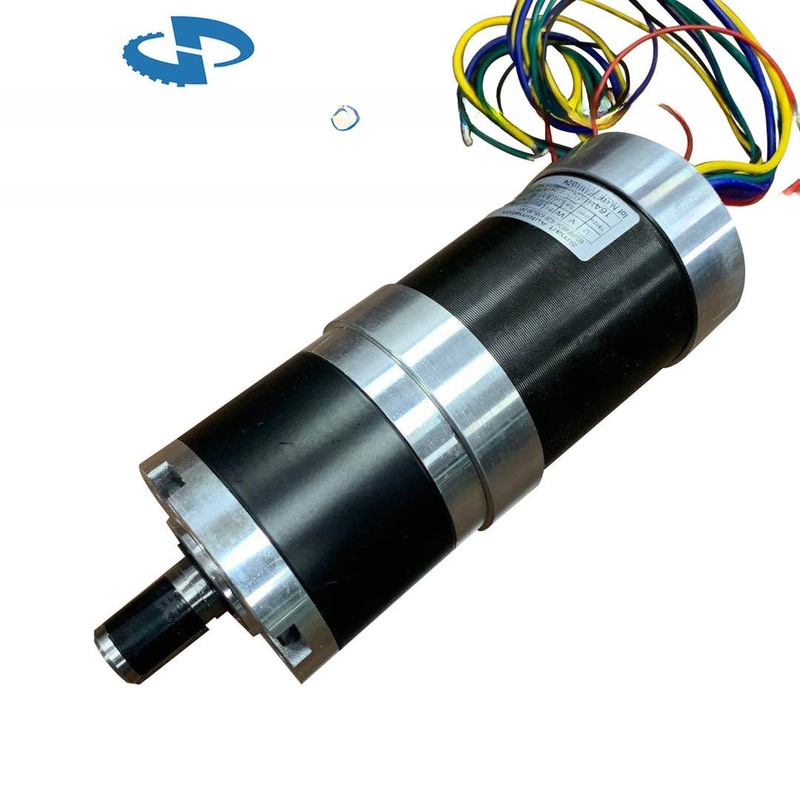

Brushless DC Planetary Gear Motor 60JXE450K.63RBL Series
Motor Main Specifications:
Bearing: High Quality Ball Bearing
IP54 Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Certifications: CE and ROHS

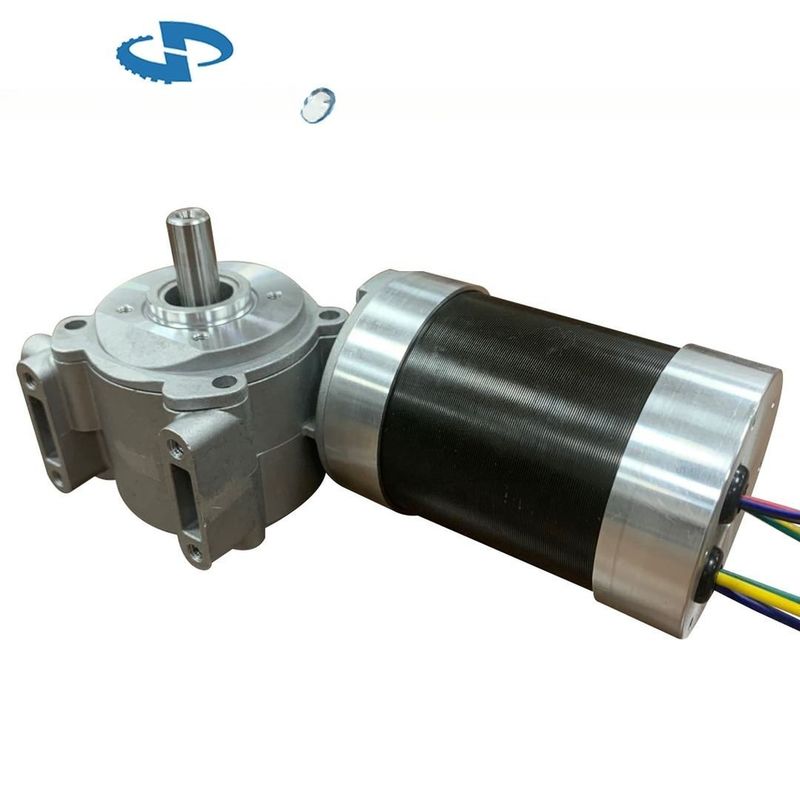

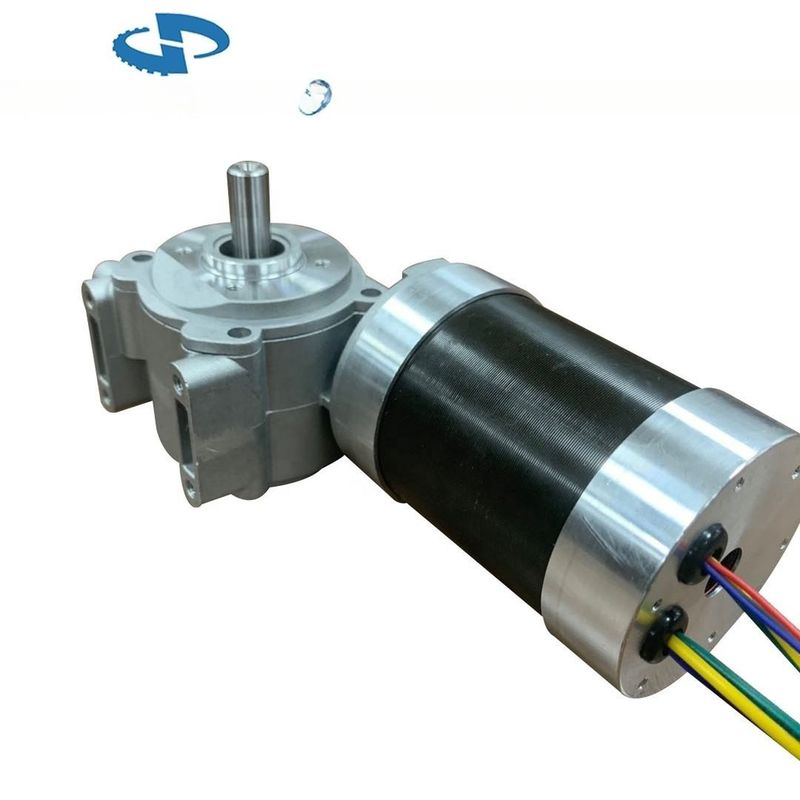

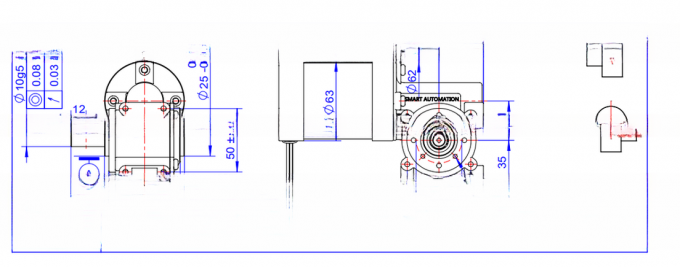

63WG.63RBL SERIES BRUSHLESS DC WORM GEAR MOTOR
Motor Main Specifications:
Bearing: High Quality Ball Bearing
Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Certifications: CE and ROHS
More BLDC Motors Available:
